AWS CodePipeline: CI/CD Pipeline Patterns for Production

CI/CD pipelines are the mechanism that turns code changes into running software — automatically, reliably, and safely. Without CI/CD, deployments are manual processes that vary between team members, skip tests under time pressure, and introduce human error at the most critical point in the software lifecycle. With CI/CD, every deployment follows the same path: build, test, stage, approve, deploy.

AWS CodePipeline orchestrates this flow using AWS-native services — CodeCommit or GitHub for source, CodeBuild for build and test, CodeDeploy for deployment, and CloudFormation for infrastructure changes. This guide covers the pipeline patterns that work in production.

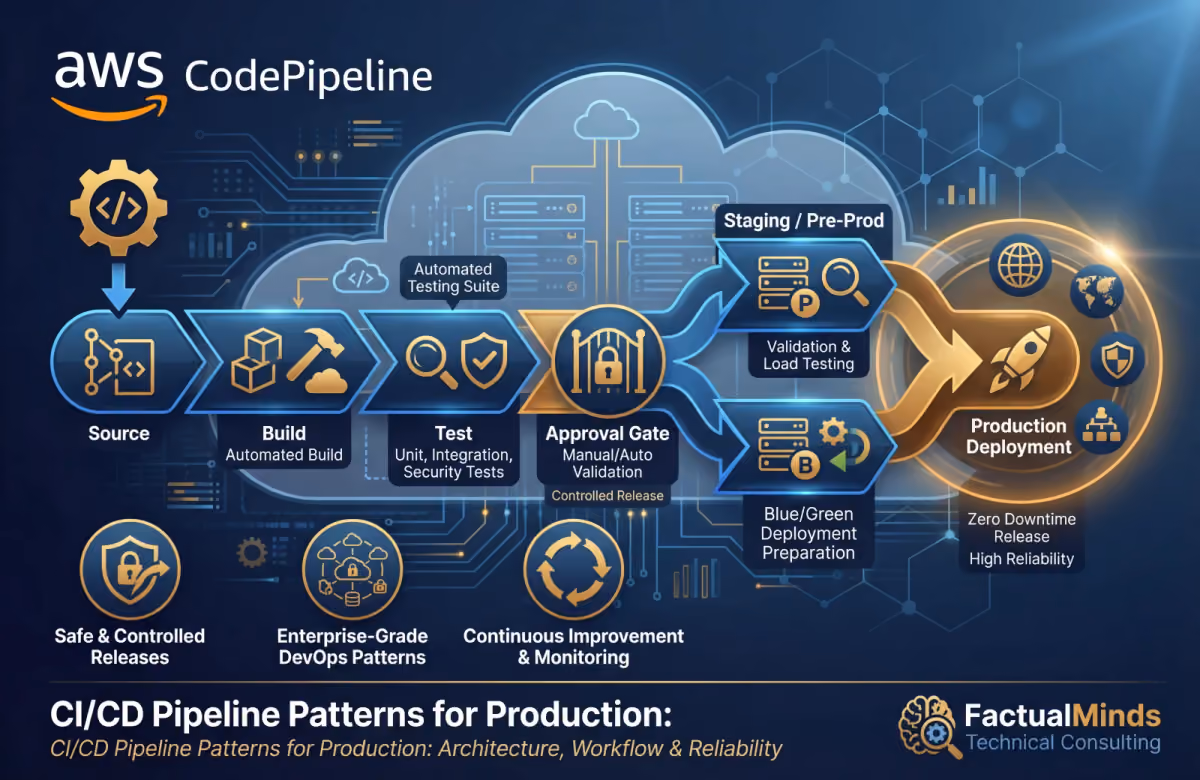

Pipeline Architecture

Basic Pipeline Structure

Every pipeline follows the same fundamental stages:

Source → Build → Test → Stage Deploy → Approval → Production Deploy

Minimum viable pipeline:

Source (GitHub)
  → Build (CodeBuild: compile, unit test, lint)
    → Deploy (CodeDeploy/ECS: deploy to staging)
      → Manual Approval
        → Deploy (CodeDeploy/ECS: deploy to production)

Production pipeline with quality gates:

Source (GitHub)
  → Build (CodeBuild: compile, unit test, lint, SAST)
    → Deploy to Staging (ECS/CodeDeploy)
      → Integration Tests (CodeBuild: API tests, E2E tests)
        → Performance Tests (CodeBuild: load testing)
          → Manual Approval (with test results link)
            → Deploy to Production (ECS/CodeDeploy: blue-green)
              → Post-Deploy Validation (CodeBuild: smoke tests)

CodePipeline V2

CodePipeline V2 introduces pipeline-level variables, triggers, and improved execution modes:

Trigger types:

• Push — Trigger on code push to specific branches
• Pull request — Trigger on PR creation or update
• Tag — Trigger on tag creation (release workflow)
• Scheduled — Trigger on a cron schedule (nightly builds)

Execution modes:

• SUPERSEDED — New execution cancels in-progress execution (default)
• QUEUED — Executions run in order, one at a time
• PARALLEL — Multiple executions run simultaneously (for independent branches)

Recommendation: Use QUEUED mode for production pipelines. SUPERSEDED can cancel a valid deployment mid-flight. PARALLEL is for feature branch pipelines where executions are independent.

CodeBuild

Build Project Configuration

CodeBuild runs your build commands in a managed container:

# buildspec.yml
version: 0.2
phases:
  install:
    runtime-versions:
      nodejs: 20
    commands:
      - npm ci
  pre_build:
    commands:
      - npm run lint
      - npm run type-check
  build:
    commands:
      - npm run build
      - npm test -- --coverage
  post_build:
    commands:
      - docker build -t $ECR_REPO:$CODEBUILD_RESOLVED_SOURCE_VERSION .
      - docker push $ECR_REPO:$CODEBUILD_RESOLVED_SOURCE_VERSION
artifacts:
  files:
    - '**/*'
  base-directory: dist
reports:
  coverage:
    files:
      - coverage/clover.xml
    file-format: CLOVERXML
  tests:
    files:
      - junit.xml
    file-format: JUNITXML
cache:
  paths:
    - 'node_modules/**/*'

Build Environment

Lambda compute mode: For builds that complete in under 15 minutes without Docker, Lambda compute starts faster (no container provisioning) and costs less. Use for lint, test, and simple build steps.

Build caching: Enable S3 or local caching for node_modules, .m2, .gradle, or other dependency directories. Caching reduces build times by 50-80% for dependency-heavy projects.

Environment Variables and Secrets

environment:
  variables:
    NODE_ENV: production
    AWS_DEFAULT_REGION: us-east-1
  parameter-store:
    DB_HOST: /myapp/prod/database/host
  secrets-manager:
    DB_PASSWORD: myapp/prod/db-password:password

Never hardcode secrets in buildspec.yml. Use Parameter Store or Secrets Manager references — CodeBuild resolves them at build time.

Deployment Strategies

Rolling Deployment

Replace instances/tasks in batches:

Batch 1 (25%): Deploy new version → Health check → Proceed
Batch 2 (25%): Deploy new version → Health check → Proceed
Batch 3 (25%): Deploy new version → Health check → Proceed
Batch 4 (25%): Deploy new version → Health check → Complete

Pros: No additional infrastructure cost, gradual rollout. Cons: Mixed versions during deployment, rollback requires another deployment.

Best for: Internal applications, non-critical services where brief mixed-version state is acceptable.

Blue-Green Deployment

Run two identical environments — deploy to the inactive one, then switch traffic:

Before: Traffic → Blue (v1.0) [active]    Green (idle)
Deploy: Traffic → Blue (v1.0) [active]    Green (v1.1) [deploying]
Switch: Traffic → Blue (v1.0) [standby]   Green (v1.1) [active]

ECS blue-green with CodeDeploy:

1. CodeDeploy creates new task set (green) with new task definition
2. Green tasks start and pass health checks
3. CodeDeploy shifts traffic: 10% to green (canary)
4. Wait 5 minutes, monitor alarms
5. Shift remaining 90% to green
6. Terminate blue task set after 1 hour (rollback window)

Pros: Zero-downtime, instant rollback (shift traffic back to blue). Cons: Double infrastructure during deployment.

Best for: Production workloads where zero-downtime and fast rollback are requirements.

Canary Deployment

Route a small percentage of traffic to the new version, then gradually increase:

Step 1: 5% → new version, 95% → current version  (10 minutes)
Step 2: 25% → new version, 75% → current version  (10 minutes)
Step 3: 50% → new version, 50% → current version  (10 minutes)
Step 4: 100% → new version                         (complete)

Automatic rollback: If CloudWatch alarms trigger during any step (error rate increase, latency spike), CodeDeploy automatically rolls back to the previous version.

CodeDeploy deployment configuration:

CodeDeployDefault.ECSCanary10Percent5Minutes
  → 10% traffic shift, wait 5 minutes, then 100%

CodeDeployDefault.ECSLinear10PercentEvery3Minutes
  → 10% every 3 minutes until 100%

Custom:
  → 5% for 10 minutes, then 25% for 10 minutes, then 100%

ECS Deployments

For ECS workloads, the pipeline builds a Docker image, pushes to ECR, and updates the task definition:

Source → CodeBuild (build + push to ECR)
  → Create new task definition revision
    → CodeDeploy: Blue-green deployment to ECS service
      → CloudWatch alarms monitor error rate
        → Auto-rollback if alarms trigger

Image tagging strategy:

ECR image tags:
  latest         ← don't use in production (mutable)
  v1.2.3         ← semantic version (for releases)
  abc123def      ← git commit SHA (for traceability, recommended)

Tag images with the git commit SHA. This creates a direct link from the running container back to the exact source code — essential for debugging production issues.

Cross-Account Pipelines

In a multi-account organization, the pipeline runs in a tools account and deploys to workload accounts:

Tools Account (pipeline + build):
  CodePipeline → CodeBuild
    → Assume role in Staging Account → Deploy to staging
      → Manual Approval
        → Assume role in Production Account → Deploy to production

Cross-Account Setup

1. Pipeline account (tools): KMS key, S3 artifact bucket, CodePipeline, CodeBuild.

2. Target accounts (staging, production): IAM role that the pipeline assumes, with permissions to deploy (ECS, CodeDeploy, CloudFormation).

3. KMS key policy: Grant the target account roles access to decrypt pipeline artifacts.

Key principle: The pipeline account has no direct access to workload resources. It assumes a deployment role in each target account, and that role has only the permissions needed for deployment — not administrative access.

Pipeline Security

IAM Best Practices

Apply least privilege to every pipeline component:

• CodePipeline service role — Access to source (CodeStar Connections), build (CodeBuild), deploy (CodeDeploy/ECS), and artifact bucket only
• CodeBuild service role — Access to ECR, artifact bucket, Parameter Store/Secrets Manager, CloudWatch Logs
• CodeDeploy service role — Access to ECS, ALB target groups, Auto Scaling
• Artifact bucket policy — Encrypted with KMS, access limited to pipeline roles

Artifact Encryption

All pipeline artifacts should be encrypted:

S3 artifact bucket:
  Encryption: AWS KMS (customer-managed key)
  Bucket policy: Deny unencrypted uploads
  Versioning: Enabled
  Lifecycle: Delete artifacts after 30 days

Source Authentication

GitHub (via CodeStar Connections): OAuth-based connection — no access tokens stored in AWS. CodeStar Connections is the recommended way to connect GitHub to CodePipeline.

CodeCommit: IAM-based authentication. Use git-remote-codecommit for HTTPS (no SSH keys to manage).

Testing in Pipelines

Test Stages

Test Reports

CodeBuild supports test report groups that display results in the console:

• JUnit XML — Test results with pass/fail/skip counts
• Clover/Cobertura XML — Code coverage reports
• Cucumber JSON — BDD test results

Configure test reports in buildspec.yml to track test results and coverage trends over time.

Monitoring

Pipeline Metrics

Set CloudWatch alarms for pipeline health:

Notifications

Configure pipeline notifications via SNS:

Events to notify:
  - Pipeline execution started
  - Pipeline execution failed (critical — page on-call)
  - Manual approval needed (notify approvers)
  - Deployment succeeded (notify team)
  - Deployment rolled back (critical — page on-call)

Deployment Tracking

Tag deployments with metadata for traceability:

Deployment:
  Commit: abc123def
  Author: jane@example.com
  Pipeline: my-app-pipeline
  Execution: 12345678-abcd-efgh
  Timestamp: 2026-10-05T14:30:00Z

Every production issue should be traceable to a specific deployment, commit, and author.

Cost Optimization

Pricing

Reducing Costs

• Use Lambda compute for CodeBuild steps that do not need Docker — 10x cheaper than general compute
• Cache dependencies — Avoid downloading node_modules or Maven dependencies on every build
• Optimize build steps — Parallelize independent steps (lint + type-check + test simultaneously)
• Right-size compute — Do not use LARGE for a build that needs SMALL
• Skip unnecessary stages — Use pipeline variables and conditions to skip stages for non-critical changes

Common Mistakes

Mistake 1: No Rollback Strategy

Deploying to production without automatic rollback on failure. Configure CloudWatch alarms that trigger automatic rollback when error rate or latency exceeds thresholds during deployment.

Mistake 2: Secrets in Source Control

Storing database passwords, API keys, or credentials in buildspec.yml or application config files. Use Parameter Store and Secrets Manager references — never embed secrets in source control.

Mistake 3: No Manual Approval for Production

Automated deployment straight to production without a manual approval gate. Even with extensive testing, production deployments should require human approval — at least until the team has high confidence in the test suite.

Mistake 4: Oversized Build Environments

Using BUILD_GENERAL1_LARGE for every CodeBuild step. Most lint, test, and simple build steps run fine on SMALL or MEDIUM. Reserve LARGE for Docker builds and integration tests.

Mistake 5: No Artifact Retention Policy

Pipeline artifacts accumulate in S3 indefinitely. Configure lifecycle rules to delete artifacts after 30 days — you rarely need build artifacts from months ago.

Getting Started

CI/CD pipelines are the operational practice that turns code changes into reliable, repeatable deployments. Combined with infrastructure as code for environment consistency, container orchestration for application deployment, and monitoring for deployment validation, CodePipeline provides the deployment automation that production workloads require.
