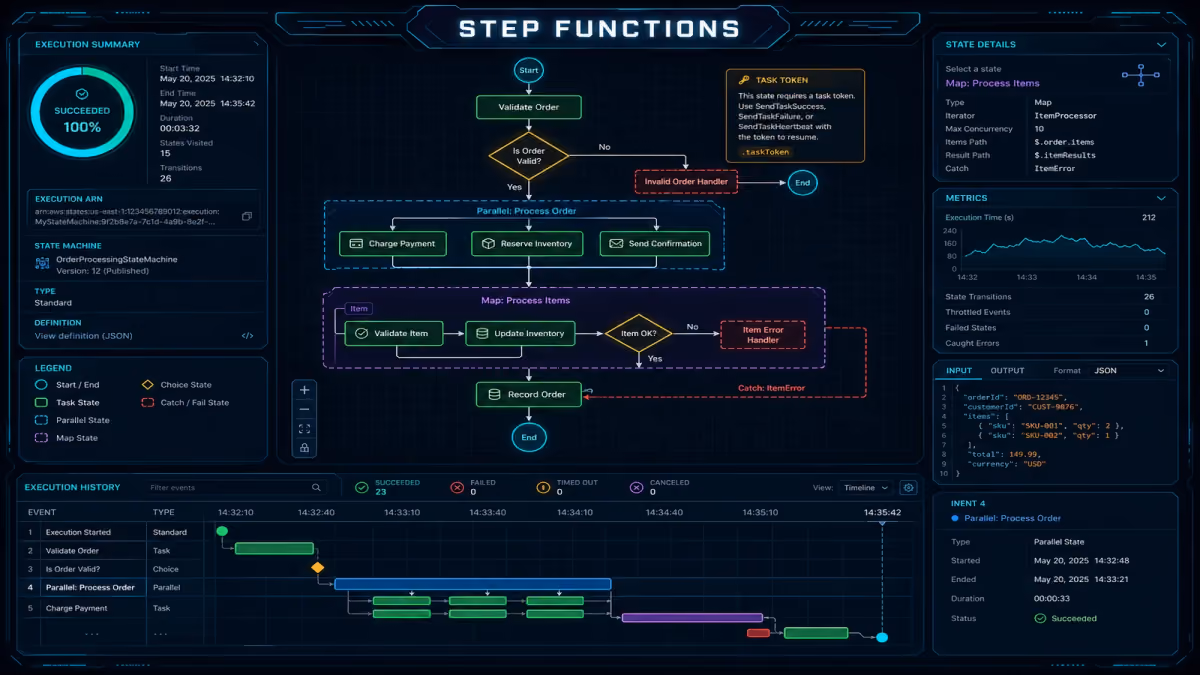

AWS Step Functions: Workflow Orchestration Patterns for Production

Step Functions is the orchestration service that ties serverless applications together. While Lambda executes individual functions, Step Functions coordinates multi-step workflows — handling sequencing, branching, error recovery, retries, and parallel execution that would otherwise require custom orchestration code.

The difference between a reliable production workflow and a fragile chain of Lambda functions usually comes down to how well you handle the coordination layer. Step Functions eliminates the need to build that coordination layer yourself.

Standard vs Express Workflows

Step Functions offers two workflow types with fundamentally different characteristics:

When to Use Standard

• ETL/data pipelines — Multi-step processing that takes minutes to hours
• Order processing — Business workflows that require exactly-once execution
• Human approval — Workflows that pause waiting for external input
• Orchestration — Coordinating multiple AWS services in sequence

When to Use Express

• Real-time data processing — High-volume event processing from Kinesis, SQS
• API orchestration — Composing multiple API calls within request/response cycles
• IoT message processing — Processing thousands of device messages per second
• Microservice choreography — Coordinating multiple services for a single request

Cost comparison: A Standard workflow with 10 state transitions costs $0.00025 per execution. An Express workflow running for 1 second with 64 MB memory costs approximately $0.000001. For high-volume workflows (millions of executions/day), Express is dramatically cheaper.

Core Patterns

Pattern 1: Sequential Pipeline

The simplest and most common pattern — execute steps in order, passing output from each step as input to the next.

Validate Input → Process Data → Write Results → Send Notification

Use cases:

• Data processing pipelines (ETL with Glue)
• User onboarding flows
• Report generation

Key design decisions:

• Each step should be idempotent — if a retry occurs, re-executing a step should produce the same result
• Pass only the data needed between steps (avoid bloating the state payload, which has a 256 KB limit)
• Use ResultPath to control how each step’s output merges into the workflow state

Pattern 2: Parallel Fan-Out

Execute multiple independent steps simultaneously, then aggregate results.

                    ┌→ Resize Image    ─┐
Input → Fan Out →   ├→ Generate Thumbnail ├→ Aggregate → Store Results
                    └→ Extract Metadata  ─┘

Use cases:

• Image/video processing (resize, transcode, extract metadata in parallel)
• Multi-source data enrichment (call multiple APIs simultaneously)
• Batch processing with parallel workers

Key design decisions:

• Parallel branches are independent — one branch failing does not cancel others (unless you configure a Catch on the Parallel state)
• Each branch’s output is collected into an array when all branches complete
• Consider using Map state instead of Parallel when the number of parallel executions is dynamic

Pattern 3: Dynamic Map (Fan-Out/Fan-In)

Process a variable number of items in parallel — similar to Promise.all() or a parallel for loop.

List Items → Map (concurrent processing) → Aggregate Results
    └→ Process Item 1
    └→ Process Item 2
    └→ ...
    └→ Process Item N

Two modes:

Inline Map — Processes items within the workflow execution. Limited to 40 concurrent iterations.

Distributed Map — Processes millions of items with up to 10,000 concurrent child executions. Each iteration is a separate child execution. Reads input from S3 (JSON, CSV) and writes results to S3.

Use cases:

• Processing every file in an S3 bucket
• Batch updating thousands of database records
• Sending notifications to a list of users
• Running compliance checks across all AWS accounts

Pattern 4: Error Handling and Retry

Step Functions provides built-in error handling that eliminates most custom retry logic:

Retry configuration:

{
  "Retry": [
    {
      "ErrorEquals": ["States.TaskFailed"],
      "IntervalSeconds": 2,
      "MaxAttempts": 3,
      "BackoffRate": 2.0
    }
  ]
}

This retries failed tasks 3 times with exponential backoff (2s, 4s, 8s). No custom code needed.

Catch configuration:

{
  "Catch": [
    {
      "ErrorEquals": ["States.ALL"],
      "Next": "HandleFailure"
    }
  ]
}

Catch routes errors to a failure-handling state — send an alert, write to a dead-letter queue, or execute a compensation workflow.

Best practices:

• Always add Retry for transient errors (States.TaskFailed, Lambda.ServiceException)
• Use Catch for non-retriable errors (validation failures, business rule violations)
• Include a TimeoutSeconds on every Task state to prevent hung executions
• Log the error cause in the Catch state for debugging

Pattern 5: Human Approval Workflow

Step Functions can pause and wait for external input using a Task Token:

Submit Request → Wait for Approval (callback) → Process Approved Request
                        ↓ (rejected)
                  Notify Requester

How it works:

1. The workflow reaches a callback task and generates a unique token
2. The token is sent to a human (via email, Slack, or a web interface)
3. The workflow pauses indefinitely (up to 1 year for Standard workflows)
4. When the human approves/rejects, an API call sends the token back to Step Functions
5. The workflow resumes with the approval decision

Use cases:

• Expense approvals
• Deployment approvals in CI/CD pipelines
• Content moderation workflows
• Infrastructure change requests

Pattern 6: Saga Pattern (Compensating Transactions)

For distributed transactions across multiple services, the saga pattern coordinates a sequence of local transactions with compensating actions for rollback:

Reserve Inventory → Charge Payment → Ship Order
        ↓ (fail)          ↓ (fail)
  (no compensation)  Release Inventory → Refund Payment

If any step fails, the saga executes compensating transactions for all previously completed steps.

Use cases:

• Order processing (reserve, charge, fulfill — with rollback at each step)
• Travel booking (flight, hotel, car — all or nothing)
• Multi-service data updates where ACID transactions are not available

Implementation: Each forward step has a corresponding compensation step. The Catch handler for each step triggers the compensation chain for all previously completed steps.

Direct Service Integrations

Step Functions can call 200+ AWS services directly — without Lambda functions in between. This reduces cost (no Lambda invocation) and latency.

Common direct integrations:

Optimization: Every Lambda invocation you replace with a direct integration saves:

• Lambda invocation cost ($0.20 per million)
• Lambda duration cost
• Cold start latency

For simple operations (DynamoDB reads, SQS sends, SNS publishes), direct integrations are always preferred over Lambda wrappers.

Cost Optimization

Standard Workflow Costs

Standard workflows charge per state transition: $0.025 per 1,000 transitions. A workflow with 10 states executing 1 million times per month costs:

• 10 million transitions × $0.025 / 1,000 = $250/month

Reduce transitions by:

• Combining multiple Lambda calls into a single function where they do not need independent error handling
• Using direct service integrations (a DynamoDB GetItem is one transition, same as a Lambda invoke)
• Using Pass states for data transformation instead of Lambda functions

Express Workflow Costs

Express workflows charge per request ($0.000001) plus per GB-second of memory:

For high-volume, short-duration workflows, Express is 1-2 orders of magnitude cheaper than Standard.

Cost Comparison Example

Processing 10 million events per month, 5 states per workflow:

Recommendation: Default to Express for event processing and high-volume workloads. Use Standard only when you need exactly-once execution, long duration, or execution history.

Monitoring and Debugging

CloudWatch Metrics

• ExecutionsStarted, ExecutionsSucceeded, ExecutionsFailed — Execution-level health
• ExecutionTime — End-to-end workflow duration
• LambdaFunctionTime, LambdaFunctionsScheduled — Lambda step performance

X-Ray Tracing

Enable X-Ray tracing on Step Functions workflows to visualize the entire execution across Lambda functions, DynamoDB calls, and other services. This is invaluable for identifying performance bottlenecks in multi-step workflows.

Execution History

Standard workflows retain execution history for 90 days. Each execution shows:

• Every state transition with input/output
• Timestamps for each state entry/exit
• Error details for failed states
• Visual representation of the workflow path taken

For Express workflows, send execution logs to CloudWatch Logs and set up Logs Insights queries for debugging.

Common Mistakes

Mistake 1: Lambda for Everything

Using Lambda functions as wrappers for simple AWS API calls (put item to DynamoDB, send message to SQS) adds unnecessary cost and latency. Use direct service integrations for straightforward API calls. Reserve Lambda for custom business logic.

Mistake 2: No Timeouts

A Task state without a timeout can hang indefinitely if the downstream service does not respond. Always set TimeoutSeconds on every Task state. Without it, a single hung Lambda function can block a Standard workflow for up to a year.

Mistake 3: Oversized State Payloads

Step Functions state payload is limited to 256 KB. Passing large datasets between states causes failures. Instead, store large data in S3 and pass the S3 key between states. This also reduces state transition data costs.

Mistake 4: No Idempotency

Standard workflows guarantee exactly-once execution. Express workflows guarantee at-least-once. In both cases, individual Lambda functions can be retried. If your Lambda function is not idempotent (e.g., it sends an email without checking if it was already sent), retries cause duplicate side effects.

Getting Started

Step Functions is the coordination layer that transforms a collection of Lambda functions and AWS services into a reliable, observable, production-grade workflow. For serverless applications, data pipelines, or any multi-step business process on AWS, Step Functions should be your default orchestration choice.
